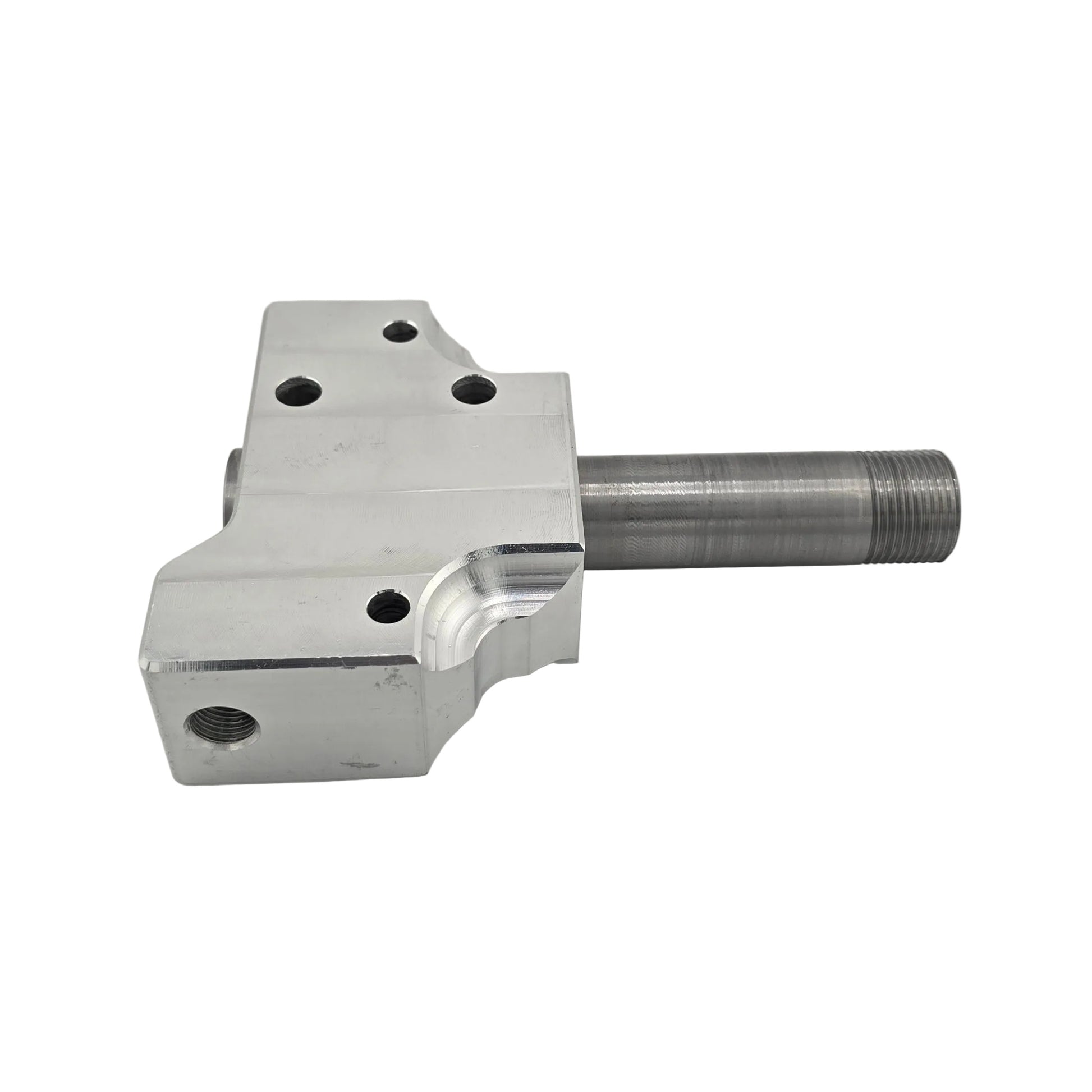

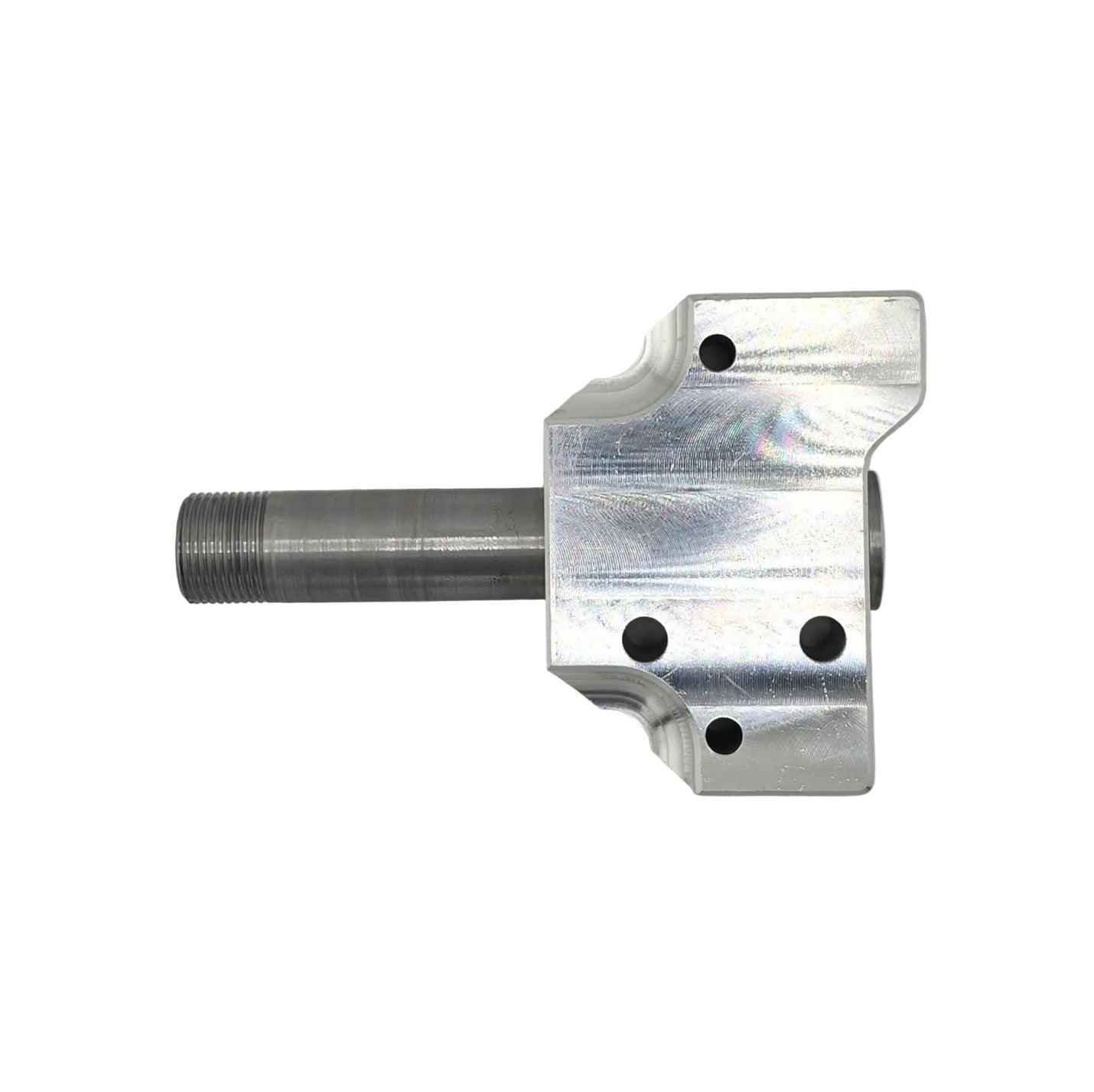

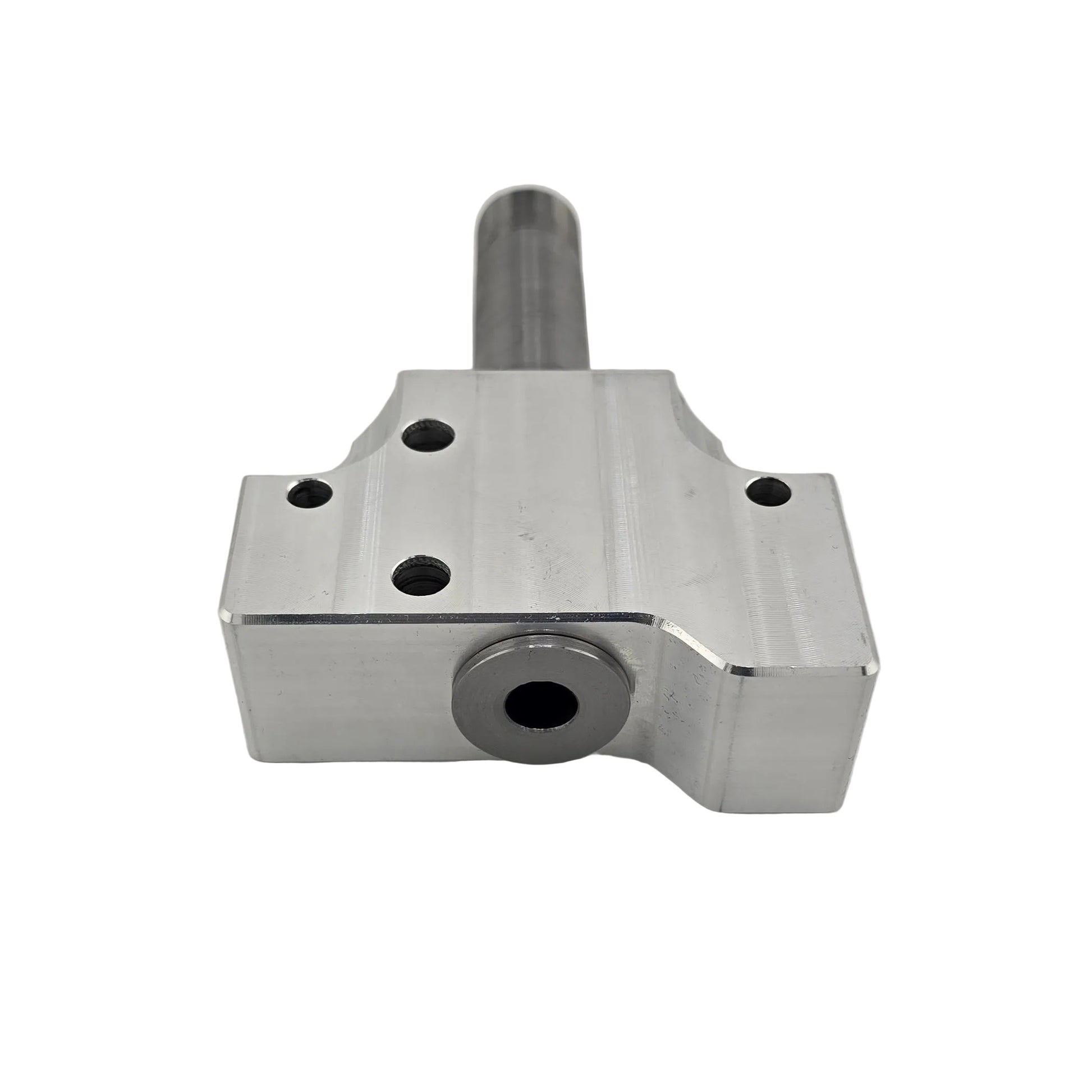

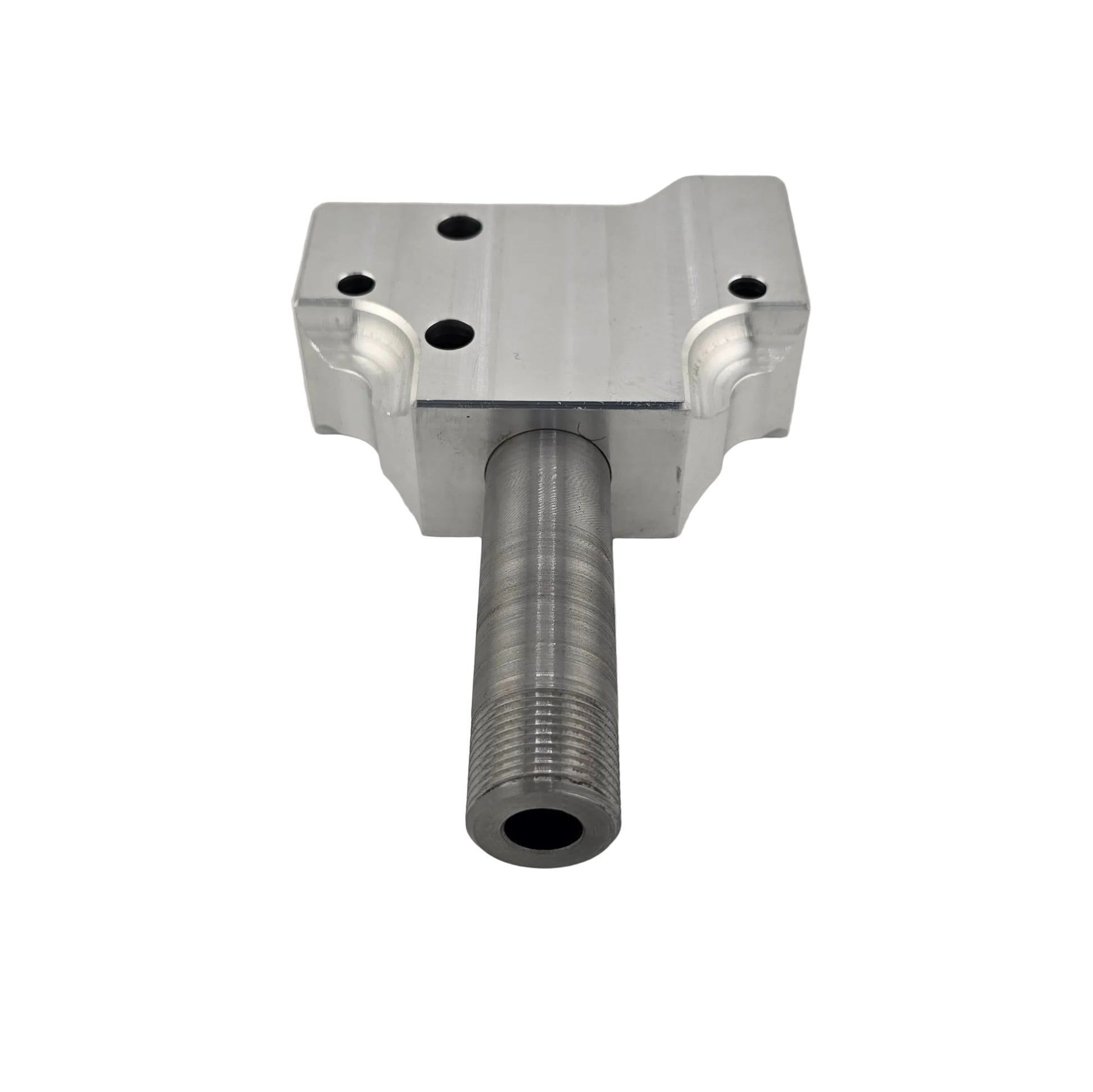

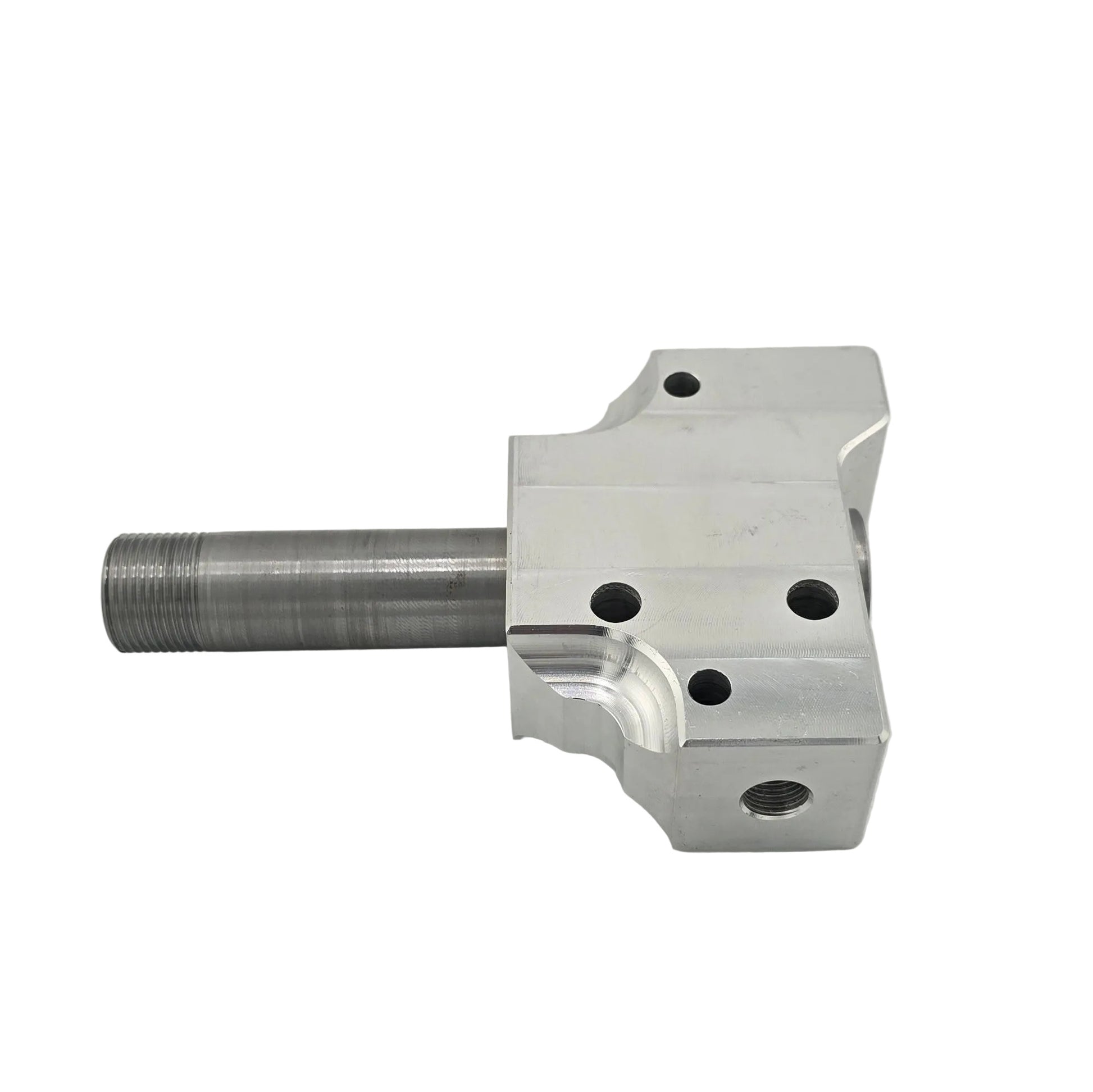

This TQ front spindle is a redesign of a Laffler Dimension Designs spindle used with beam axles. The axle would have rod ends on it that bolts would pass through and thread into the spindle as king pins. Spindle body is made from aluminum and the snout is made from hollow steel.
The spindle uses our TQ Beam Axle Steering Arm SKU#FTATQSAB which is sold separately.
Brake caliper and steering arm mount holes are un-threaded. King pin bolts are 1/2-20.
Weight: 2.25lbs
Body Dimensions: Height- 4.25" Length- 2.75" Thickness- 1.50"
Snout Dimensions: OD- 1.00" Total Length- 6.125" Usable Length- 3.25"
